ADG794BRQZ-REEL7 Integrated Circuit Ic Chip HDTV Audio Video Switch

Brand Name : ADI / MAXIM

Model Number : ADG794BRQZ-REEL7

Place of Origin : original

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 999999

Delivery Time : 1-3 days

Packaging Details : standard

Multiplexer/Demultiplexer Circuit : 2:1

On-State Resistance (Max) : 7Ohm

Channel-to-Channel Matching (ΔRon) : 400mOhm

Voltage - Supply, Single (V+) : 3.3V, 5V

Voltage - Supply, Dual (V±) : -

Switch Time (Ton, Toff) (Max) : 7ns, 5ns (Typ)

PN : ADG794BRQZ-REEL7

Contact Now

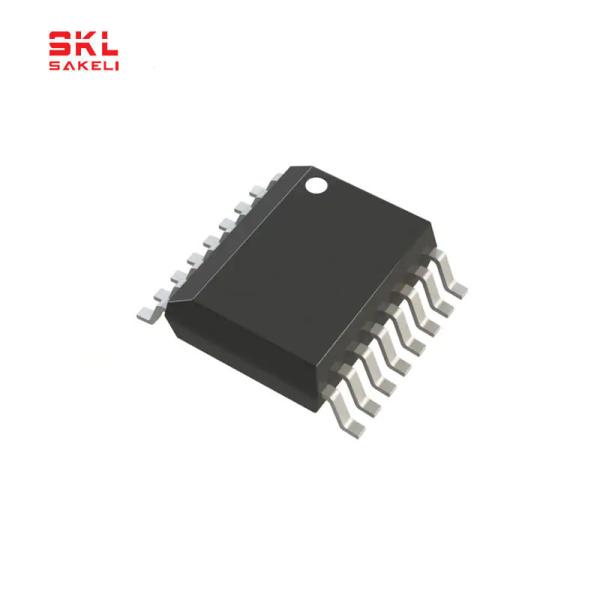

 ADG794BRQZ-REEL7 Electronic Components IC Chip HDTV Audio Video Switch Package 16-QSOP






Product Status
Active
Switch Circuit
SPDT
Multiplexer/Demultiplexer Circuit
2:1
Number of Circuits
4
On-State Resistance (Max)
7Ohm
Channel-to-Channel Matching (ΔRon)
400mOhm
Voltage - Supply, Single (V+)
3.3V, 5V
Voltage - Supply, Dual (V±)
-
Switch Time (Ton, Toff) (Max)
7ns, 5ns (Typ)
-3db Bandwidth
300MHz
Charge Injection
7.5pC
Channel Capacitance (CS(off), CD(off))
8pF, 14pF
Current - Leakage (IS(off)) (Max)
1pA (Typ)
Crosstalk
-70dB @ 10MHz
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
16-SSOP (0.154", 3.90mm Width)
Supplier Device Package
16-QSOP

FEATURES
Bandwidth: 300 MHz
Low insertion loss and on resistance: 5 Ω typical
On-resistance flatness: 0.7 Ω typical
Single 3.3 V/5 V supply operation
Low quiescent supply current: 1 nA typical
Fast switching times
tON, 7 ns
tOFF, 5 ns
TTL/CMOS compatible
ESD protection
2 kV human body model (HBM)
200 V machine model (MM)
1 kV field-induced charged device model (FICDM)
APPLICATIONS
RGB switches
HDTV
DVD-R
Audio/video switches
